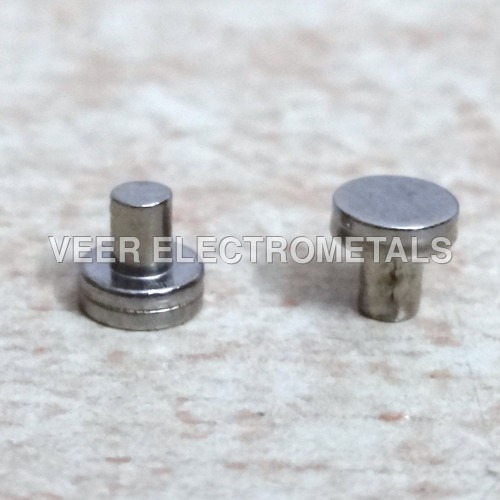

Solid Tungsten Contact Rivets

Next > >

<< Previous

Send Inquiry

Product Code : TCR-01

Brand Name : VEER ELECTROMETALS

Price And Quantity

Minimum Order Quantity
5000
Unit of Measure
Piece/Pieces

Price
2 INR

Product Description

We are widely accepted name in global market for manufacturing and supplying the best quality array of Solid Tungsten Contact Rivets. These are widely used in high frequency make and break applications such as automobile horns, relays and distributor point. The offered rivets have additional resistances to thermal and corrosive damage. Available in different specifications, these are manufactured under the vigilance of our vendors. In addition, these Solid Tungsten Contact Rivets can be purchased from us at market-competent prices.

Features:

Weather resistance
Easy to install
Robust construction

We are an expert in manufacturing, supplying and export of Tungsten Contact Rivets. Our Tungsten Contact Rivets is manufactured with keen precision by our quality personnel. They ensure that our Tungsten Contact Rivets conforms to the international quality standard of ISO 9001:2008 certification. Tungsten Contact Rivets that we manufacture are of superior quality displaying outstanding performance. Tungsten Contact Rivets that we supply stands on the fore-front on electric and thermal conductivity, higher bending strength, resistivity, tolerance, hardness, density and thickness. They are available at industry leading rates to our clients.

Tungsten Contact Rivets are formed by brazing (welding/soldering) tungsten disc with mild steel rivets. The rivets are made according to customer specifications and requirements. The contacts are plated by pure nickel to make it corrosion resistant.

These have the following specifications:

Material Specification:

Purity of Tungsten (%)	Grain count (per sq. mm)	Surface Roughness (m)	Density (gms/cc)
99.95	8000-20000	0.2	19.3

Dimensional specification (Tungsten Disc):

Diameter (mm)	Tolerance (mm)	Thickness (mm)	Tolerance (mm)
2.5-6	±0.05	0.5-1.5	±0.05

The dimensions of the Mild Steel rivets vary as per customer requirements.

Some of the types of rivets, which are used in tungsten contacts, are:

Plain
Ventilated
Collar type
Screws

Specification

Size	As per customer requirement
Brand	Veer
Packaging Type	Box
Diameter	2.0 mm to 10 mm
Thickness	Above h0.50mm
Color	Silver

Trade Information

FOB Port
New Delhi
Supply Ability
10000 Per Day

Delivery Time
1 Days
Sample Available
Yes

Sample Policy
Within a certain price range free samples are available
Packaging Details
Inner packing: Plastic bags with silica gel to prevent oxidation Outer packing: Wooden Cartons with dimensions 25cm x30cm x18cm.

Certifications
ISO 9001:2008 QMS
